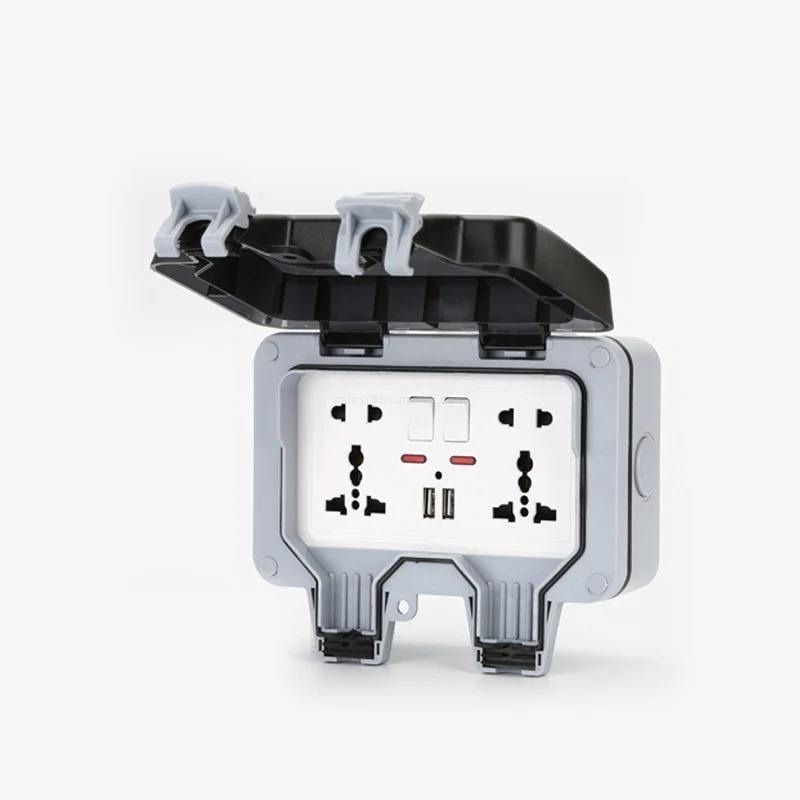

IP66 Waterproof Outdoor Wall Socket Universal Plug Dual USB Ports Weatherproof Electrical Receptacle Box

Professional Grade Outdoor Power Solution

Engineered to deliver uncompromising electrical safety in harsh outdoor environments this heavy duty exterior receptacle is designed for both residential and commercial applications. Built with a robust thermoplastic enclosure it offers superior protection against severe weather conditions ensuring uninterrupted power supply for gardens patios garages and industrial sites.

Technical Expertise and Specifications

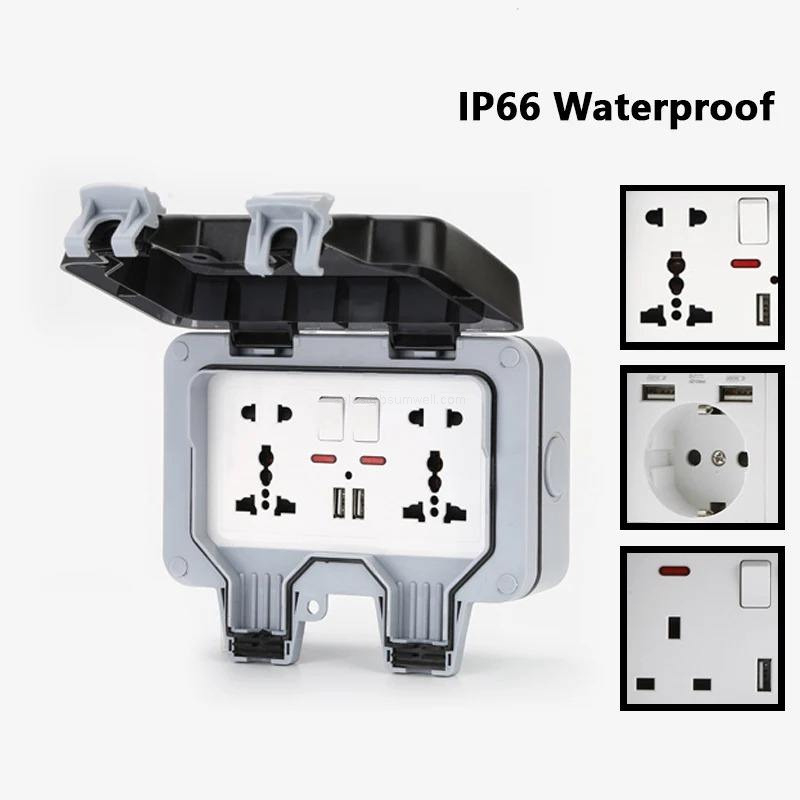

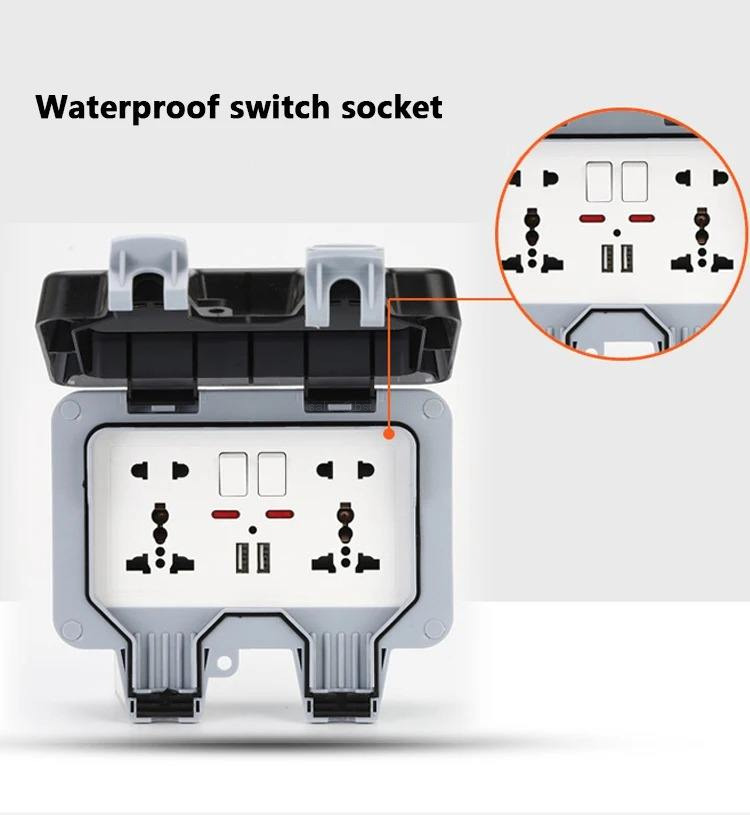

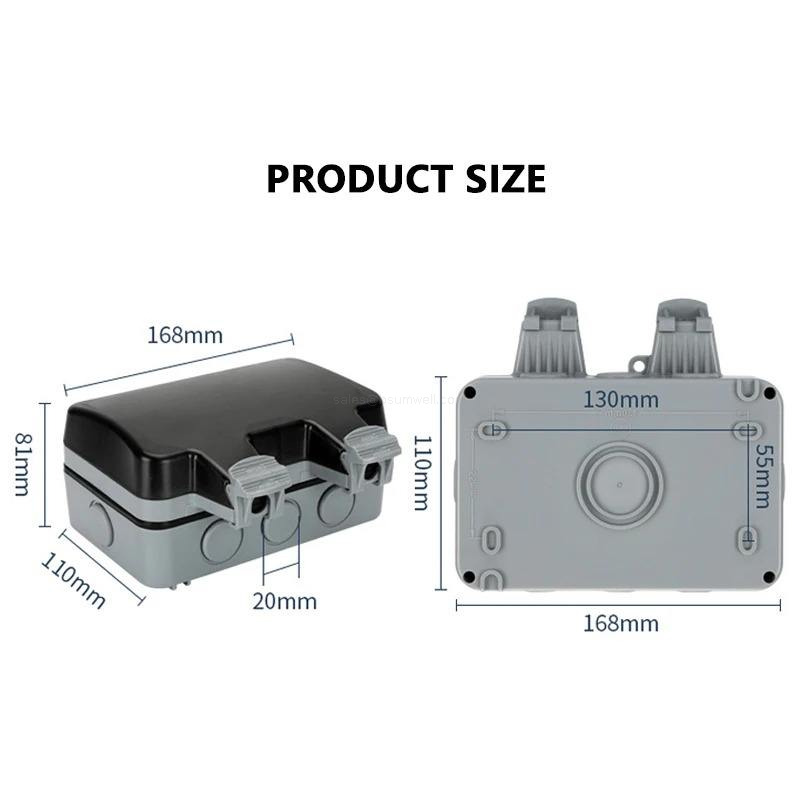

Featuring a strict IP66 ingress protection rating this unit is fully dust-tight and rigorously tested against powerful water jets. The internal architecture houses a highly versatile universal socket configuration supporting major international plug standards alongside dual integrated USB ports and independent switch controls. The precise external dimensions of 168mm by 110mm by 81mm provide ample interior wiring space to reduce cable bending stress. The back box features standard 130mm horizontal and 55mm vertical mounting hole distances for professional seamless installation.

Uncompromised Safety and Trust

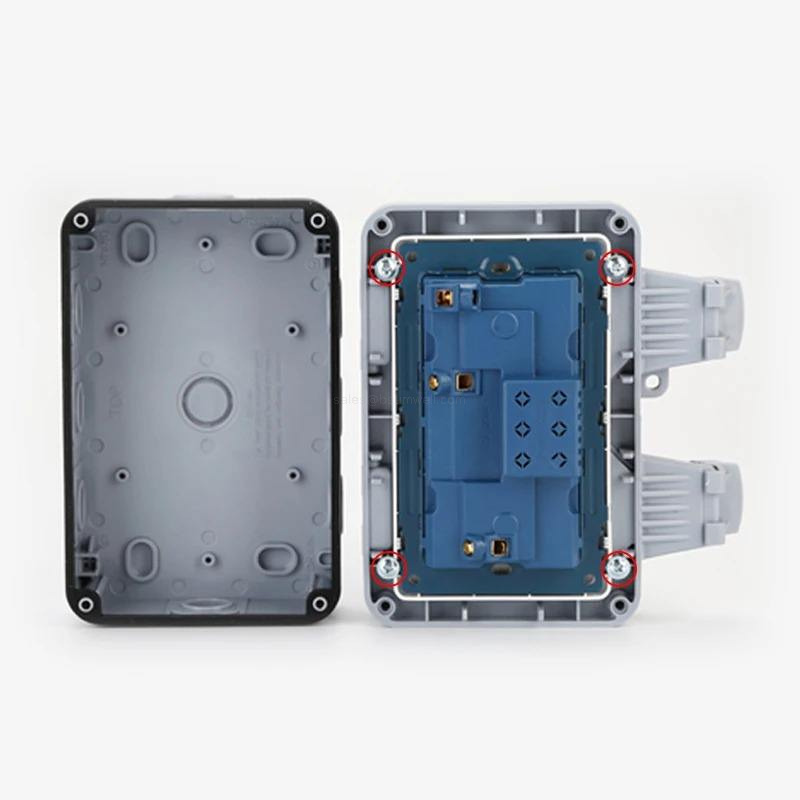

Electrical safety is our primary focus. The enclosure incorporates a high quality heavy duty rubber sealing gasket and secure fastening clasps that maintain the waterproof integrity even when plugs are actively connected. To prevent unauthorized power usage and protect children the robust transparent cover features a dedicated locking mechanism accommodating a padlock up to 20mm in width. The internal modules are securely fastened with four reinforced corner screws ensuring mechanical stability during repeated plug insertion and removal.

Frequently Asked Questions (FAQs)

Q1: What are the primary material advantages of using ABS primary material for this socket box?

A1: This box is injection-molded from high-hardness ABS primary material, which provides high impact resistance compared to recycled or low-tier plastics. It is engineered to maintain structural stability under both low-temperature freezing conditions and high-temperature summer exposure, preventing warping or cracking.

Q2: What type of plugs can safely fit inside the box while keeping the outer cover completely closed?

A2: The inner chamber features an extended depth profile with a 20mm internal socket recess and a 15mm clearance inside the swinging cover, providing a 35mm space threshold. Standard power cords and molded appliance plugs with a thickness within 35mm can be cleanly plugged in while keeping the outer waterproof lid fully latched. Plugs exceeding 35mm will prevent the lid from closing completely.

Q3: How does the triple-layer sealing ring prevent water leakage from high-pressure water jets?

A3: The enclosure integrates an advanced triple-layer silicone rubber ring configuration combined with a high-strength waterproof sealant boundary. This multi-layer compression barrier achieves a certified IP66 rating, meaning the box can withstand high-pressure water spray from any direction without allowing moisture to penetrate the interior electrical terminal area.

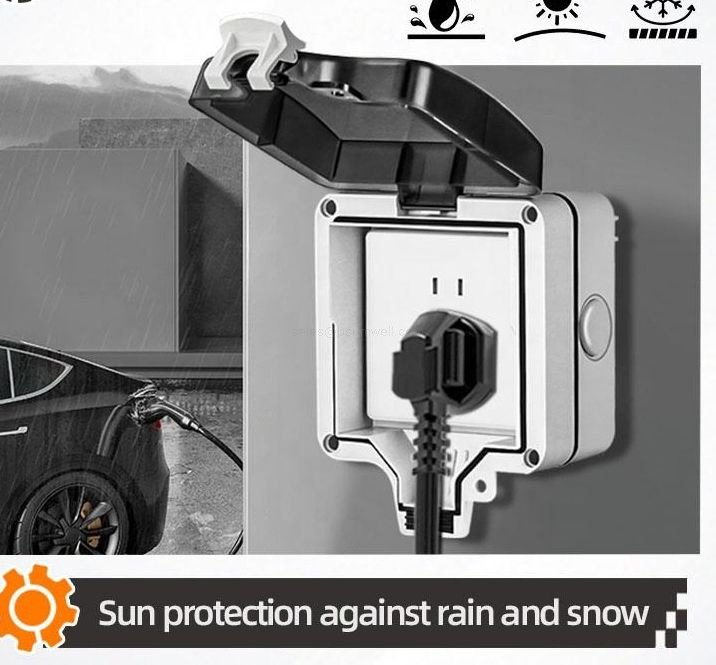

Q4: Can this waterproof box be used for high-power demanding outdoor applications like EV charging?

A4: Yes. The enclosure complies with safety production standard GB/T 17466.1-2019 and accommodates most standard type 86 switch socket panels. It is designed to handle continuous heavy loads and is commonly utilized to protect the power lines of heavy-duty appliances like air conditioners, industrial refrigeration units, and outdoor vehicle charging sheds.
