IP65\ IP66\ IP67\ IP68
BSUMWELL/ OEM
$12.3 - $19.8
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

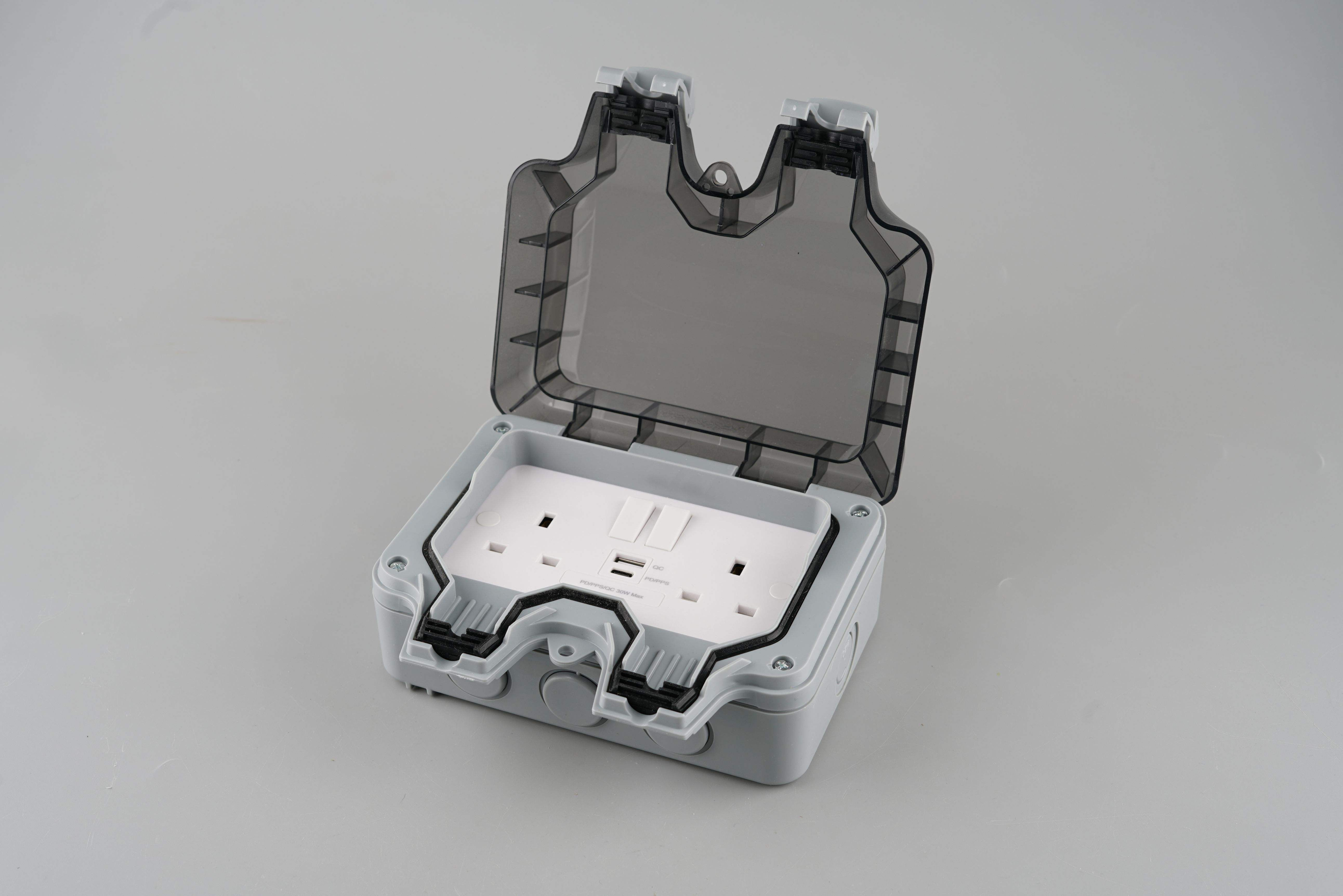

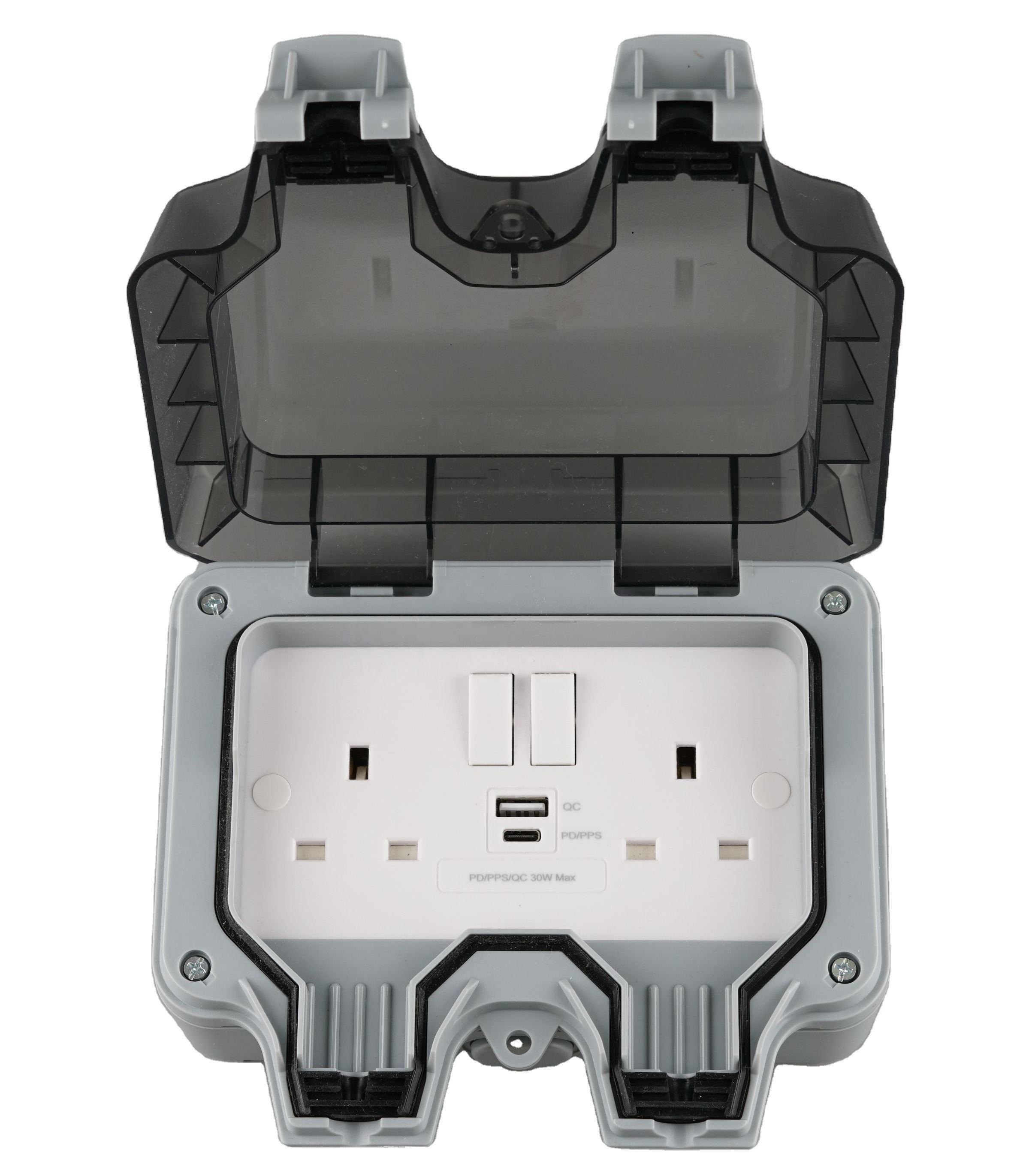

| Waterproof British Switched Socket with USB a + C 20W PD3.0, QC3.0 Type C , Fast Charging | |||||||||
Advanced Outdoor Power and Fast-Charging Hub
Engineered to meet the demands of modern smart devices and heavy-duty outdoor appliances, this dual British standard switched socket is an essential upgrade for residential and commercial exteriors. Unlike traditional outdoor outlets, this unit integrates advanced 30W Max PD, PPS, and QC fast-charging technology via dedicated USB-A and Type-C ports. This allows users to rapidly charge smartphones, tablets, and outdoor smart gear directly from the wall without requiring bulky charging bricks, making it ideal for patios, gardens, and outdoor workspaces.
Rugged Architectural Design and Technical Expertise
Designed to perform flawlessly in severe weather conditions, the enclosure features a high-impact resistant thermoplastic housing paired with a heavy-duty weather seal. The dark transparent cover allows for easy visual inspection of the power status while protecting the internal components from UV degradation and physical impact. The independent mechanical switches for each UK socket provide precise power control and enhanced safety, preventing phantom power draw and reducing electrical hazards in wet environments.
Uncompromised Safety and Installation Reliability
Safety is engineered into every component. The deeply recessed back box provides ample space for secure wire routing, reducing stress on electrical connections. The robust dual-latch fastening system ensures a tight compression seal against moisture and dust when closed over active plugs. Suitable for mounting on uneven exterior surfaces such as brick or masonry, the unit maintains its structural integrity and waterproof rating, ensuring long-term, trustworthy performance for all your exterior power needs.
Q1: What are the primary material advantages of using ABS primary material for this socket box?
A1: This box is injection-molded from high-hardness ABS primary material, which provides high impact resistance compared to recycled or low-tier plastics. It is engineered to maintain structural stability under both low-temperature freezing conditions and high-temperature summer exposure, preventing warping or cracking.
Q2: What type of plugs can safely fit inside the box while keeping the outer cover completely closed?
A2: The inner chamber features an extended depth profile with a 20mm internal socket recess and a 15mm clearance inside the swinging cover, providing a 35mm space threshold. Standard power cords and molded appliance plugs with a thickness within 35mm can be cleanly plugged in while keeping the outer waterproof lid fully latched. Plugs exceeding 35mm will prevent the lid from closing completely.
Q3: How does the triple-layer sealing ring prevent water leakage from high-pressure water jets?
A3: The enclosure integrates an advanced triple-layer silicone rubber ring configuration combined with a high-strength waterproof sealant boundary. This multi-layer compression barrier achieves a certified IP66 rating, meaning the box can withstand high-pressure water spray from any direction without allowing moisture to penetrate the interior electrical terminal area.
Q4: Can this waterproof box be used for high-power demanding outdoor applications like EV charging?
A4: Yes. The enclosure complies with safety production standard GB/T 17466.1-2019 and accommodates most standard type 86 switch socket panels. It is designed to handle continuous heavy loads and is commonly utilized to protect the power lines of heavy-duty appliances like air conditioners, industrial refrigeration units, and outdoor vehicle charging sheds.
