IP65\ IP66\ IP67\ IP68
BSUMWELL/ OEM
$1.3 - $4
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| White Brazilian 20A Power Socket Electrical Wall Outlet with Usb Charger ,118mm*72mm, Usb Wall Socket 3 Pin Plug Adapter | |||||||||

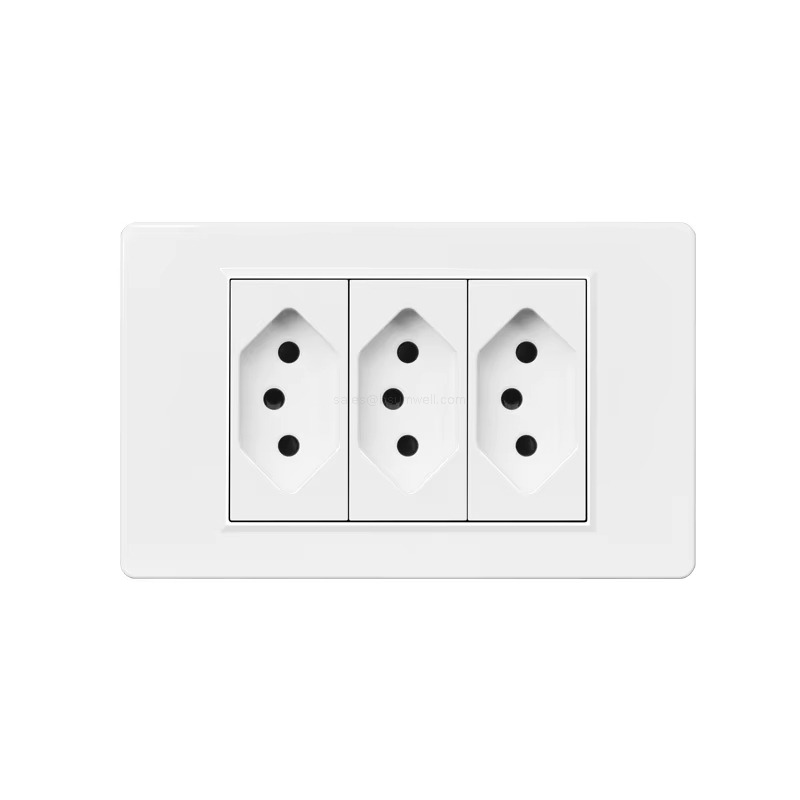

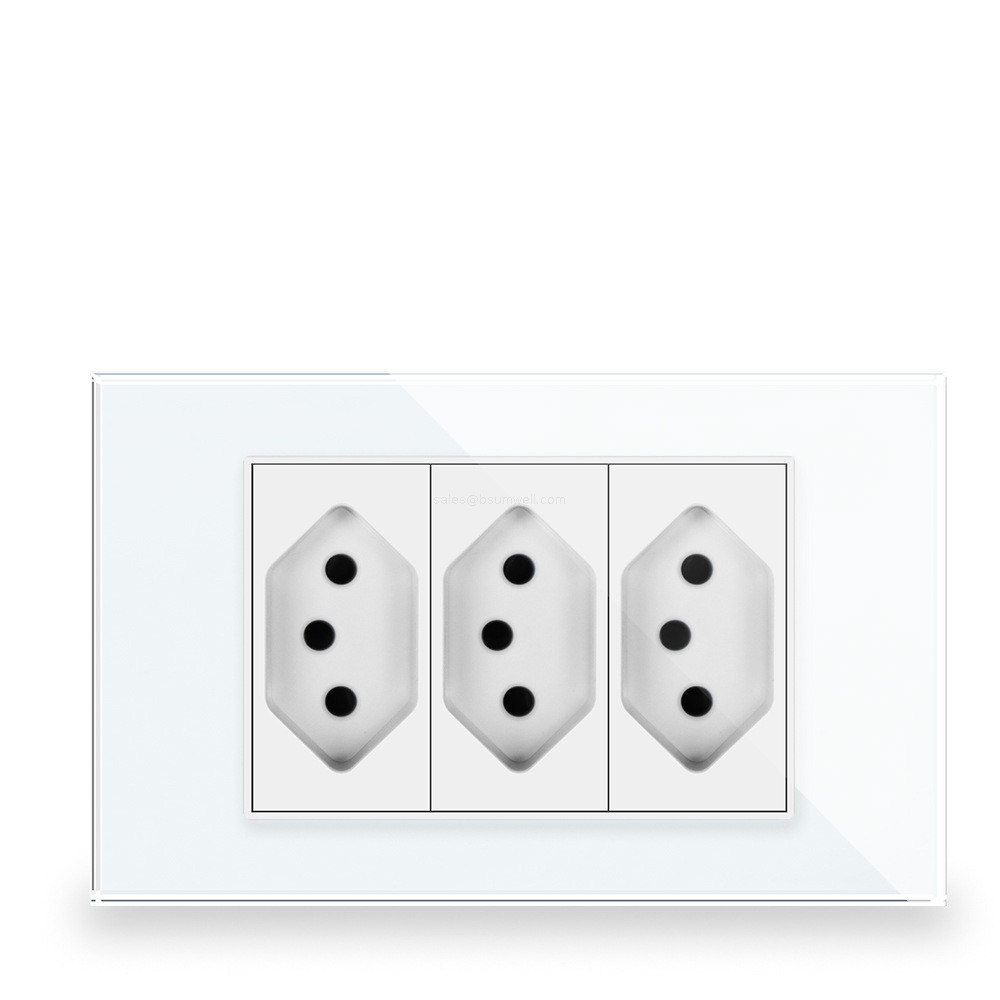

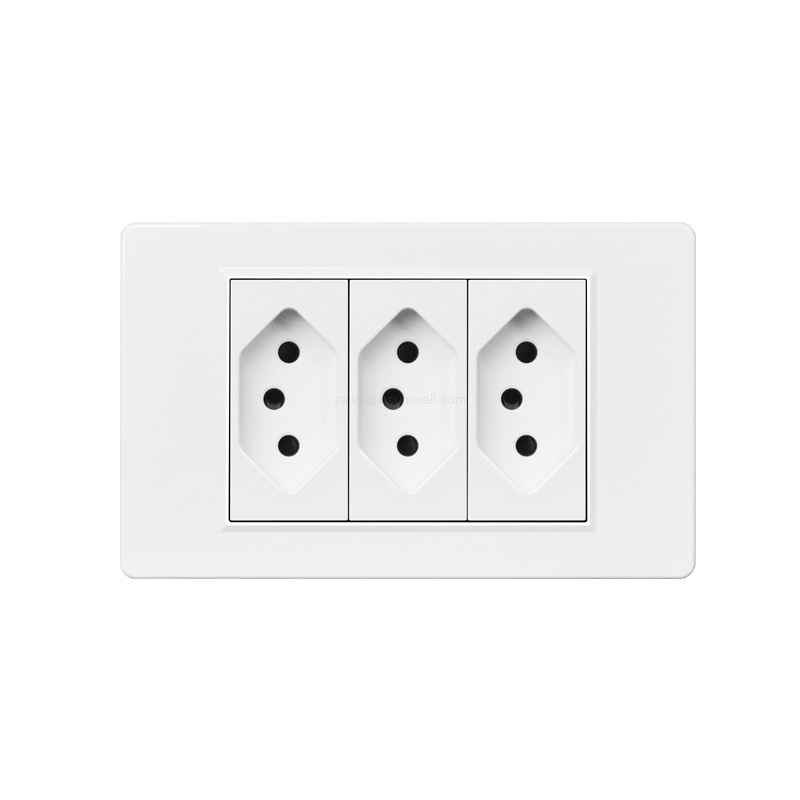

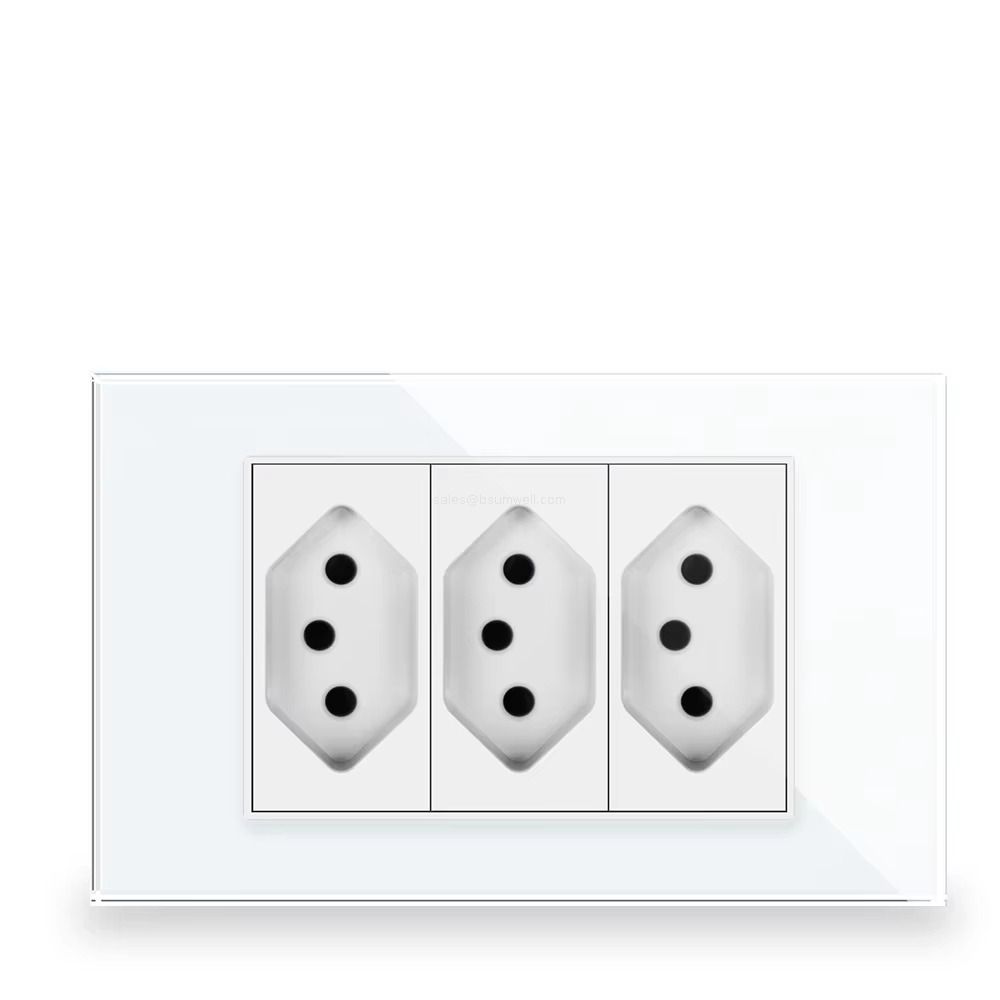

Engineered in strict accordance with the Brazilian national standard NBR 14136, this premium wall power socket guarantees seamless compatibility and mechanical safety for both 10A and 20A configurations. The outer enclosure features an option of high-impact resistant Polycarbonate (PC) or a sophisticated 4mm scratch-resistant tempered glass surface panel. Both materials offer exceptional flame-retardant properties, successfully passing rigorous glow-wire tests up to 850°C to ensure long-term structural integrity and localized fire mitigation under continuous thermal load.

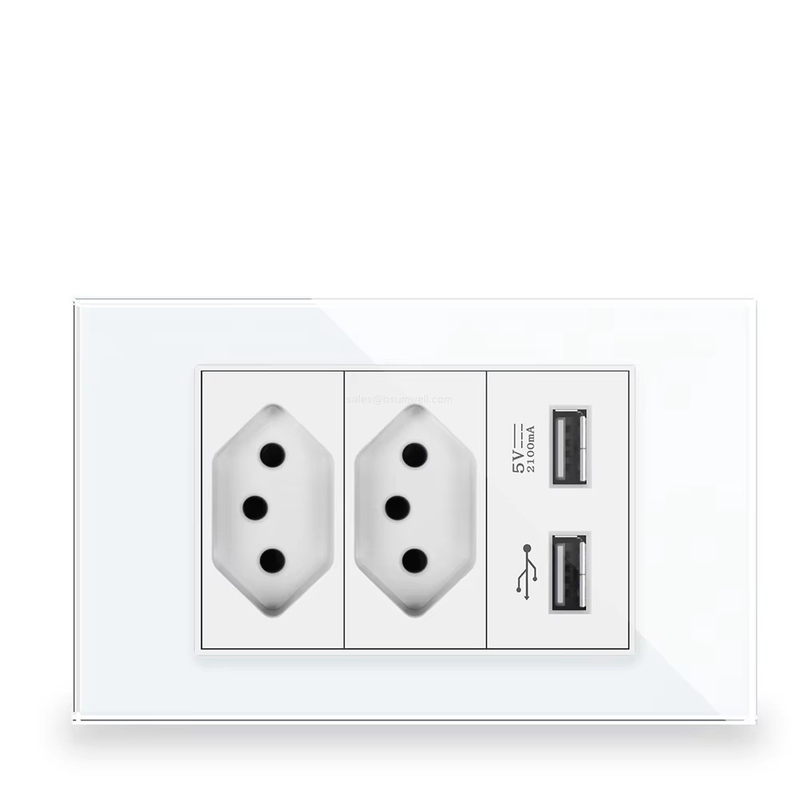

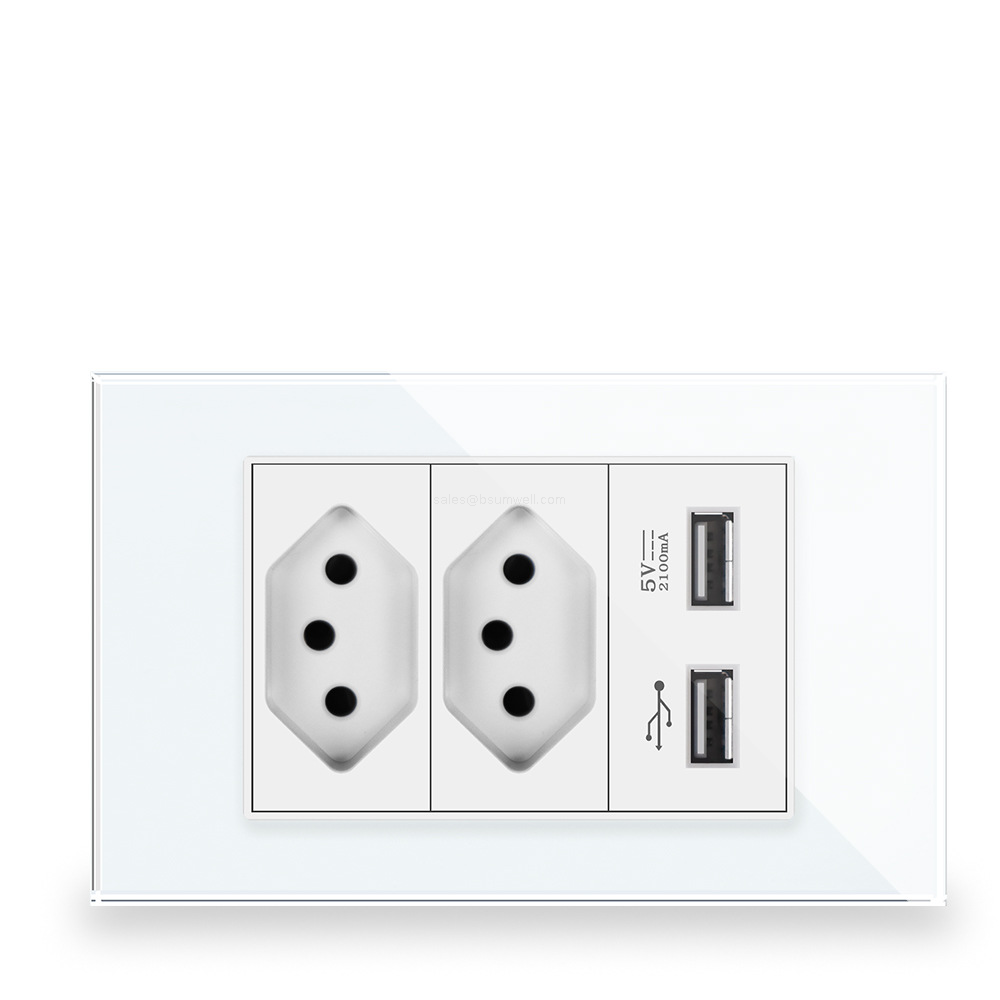

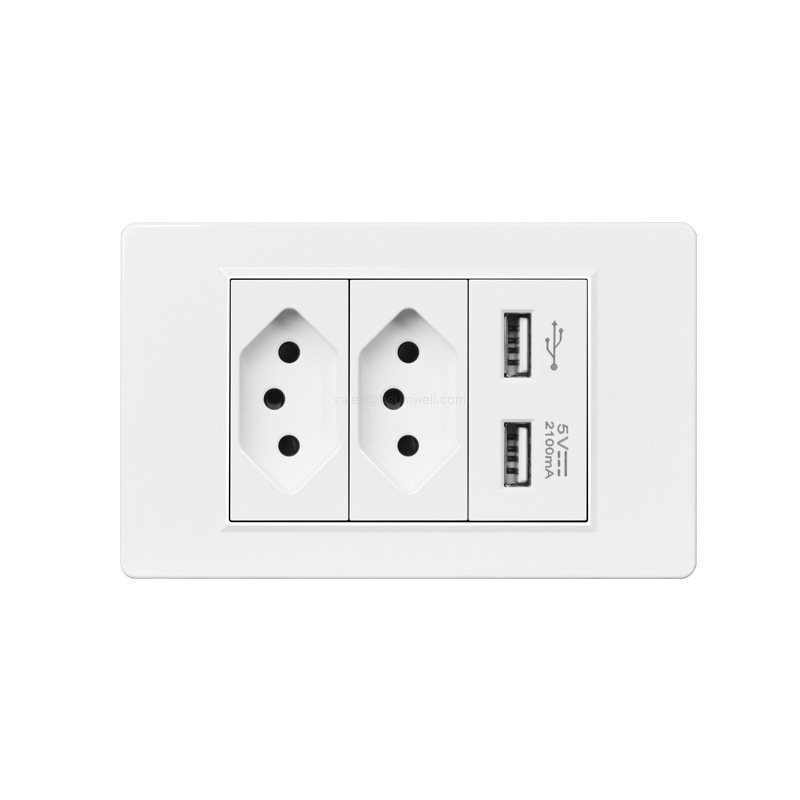

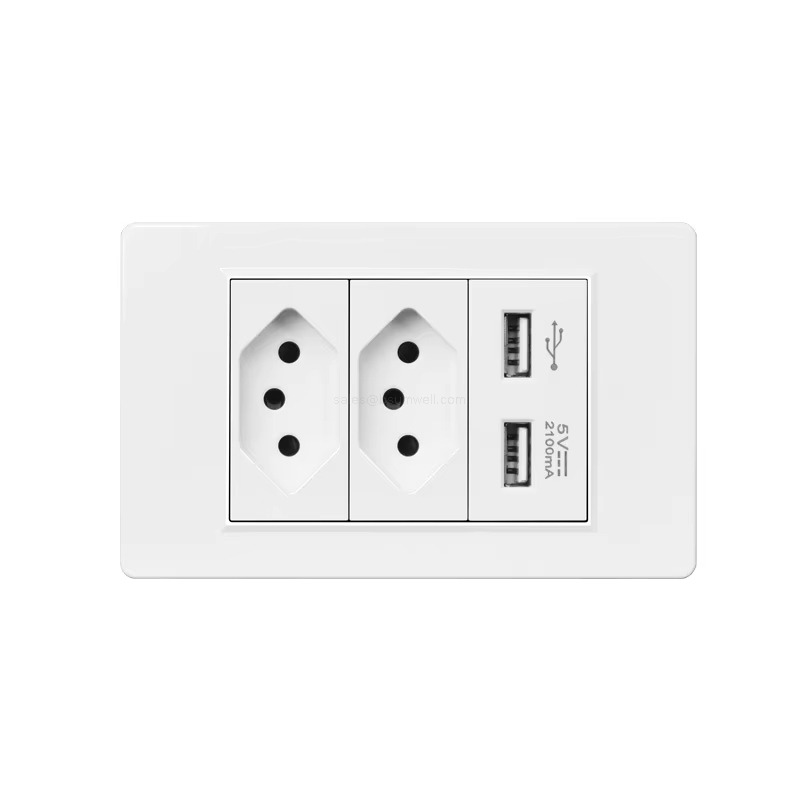

The integrated dual USB charging module features an isolated step-down transformer circuit that delivers a highly stable 5V DC, 2100mA cumulative output. Optimized for smart power distribution, the internal printed circuit board (PCB) is equipped with intelligent over-current protection, short-circuit protection, and over-voltage suppression mechanisms. This safeguards connected digital devices from transient voltage fluctuations and guarantees a prolonged service life for both the wall outlet and the charging electronics.

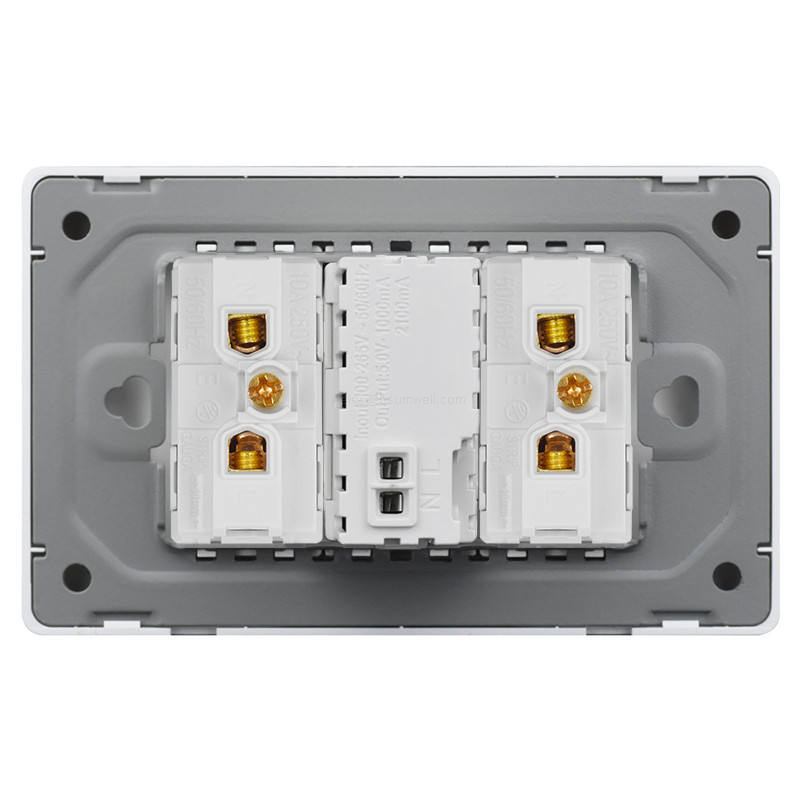

Designed with an interchangeable modular chassis layout, the rear infrastructure supports independent socket block configurations to meet versatile installation requirements. The internal conductor grid utilizes premium-grade, high-conductivity phosphor bronze contacts, delivering optimal elastic retention force and superior corrosion resistance compared to standard brass alternatives. The rear terminal ports accommodate standard solid or stranded copper conductors, featuring intuitive terminal markings (L for Live, N for Neutral, and Ground) along with heavy-duty brass clamping screws to prevent loose wire connections and eliminate the risk of electrical arcing.
Q1: Can this socket accommodate both 10A and 20A Brazilian standard plugs? A1: Yes. The structural design of the socket apertures is engineered to securely fit both 4.0mm pins (standard 10A plugs) and 4.8mm pins (heavy-duty 20A plugs), ensuring optimal mechanical retention and electrical conductivity without loosening over time.
Q2: Is the tempered glass panel scratch-resistant and safe for high-humidity environments? A2: Absolutely. The surface panel utilizes high-strength, premium tempered glass that resists micro-scratches, impacts, and discoloration. Additionally, the non-conductive glass material provides an extra layer of insulation, and its non-porous surface makes it easy to wipe clean, making it highly reliable for daily residential and commercial use.
Q3: How does the integrated dual USB port module protect connected smartphones and tablets? A3: The internal USB charging PCB is built with an intelligent power management chip that automatically detects the connected device's optimal current requirements. It features built-in multi-protection circuits—including over-temperature cut-off, short-circuit protection, and over-load protection—preventing battery degradation and keeping your devices safe during charging cycles.

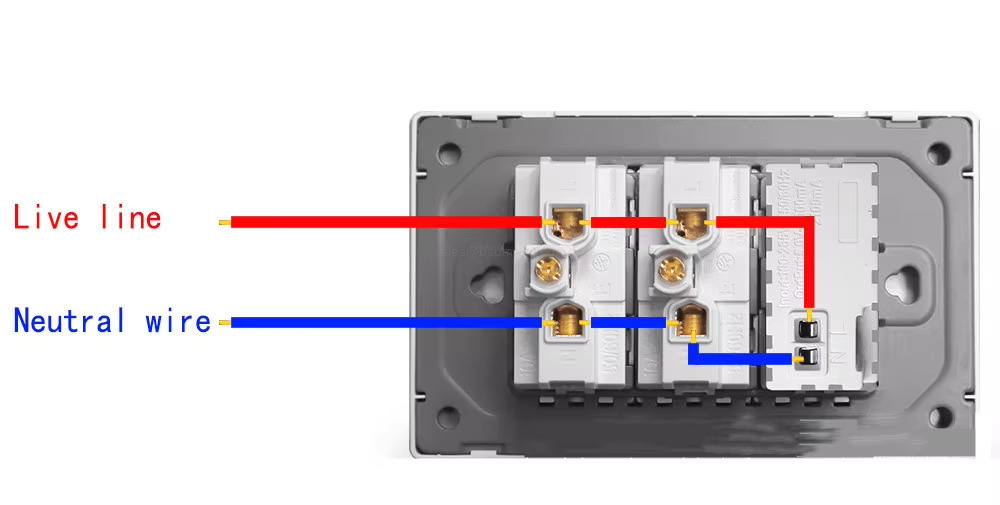

Q4: What are the wiring requirements for installing this modular electrical outlet? A4: The rear plate features standard screw terminal blocks designed for quick and secure installation using standard copper electrical wires. The terminals are clearly marked for Live (L), Neutral (N), and Ground (E) lines, supporting standard parallel bridge wiring for multiple modules in a single wall box.
