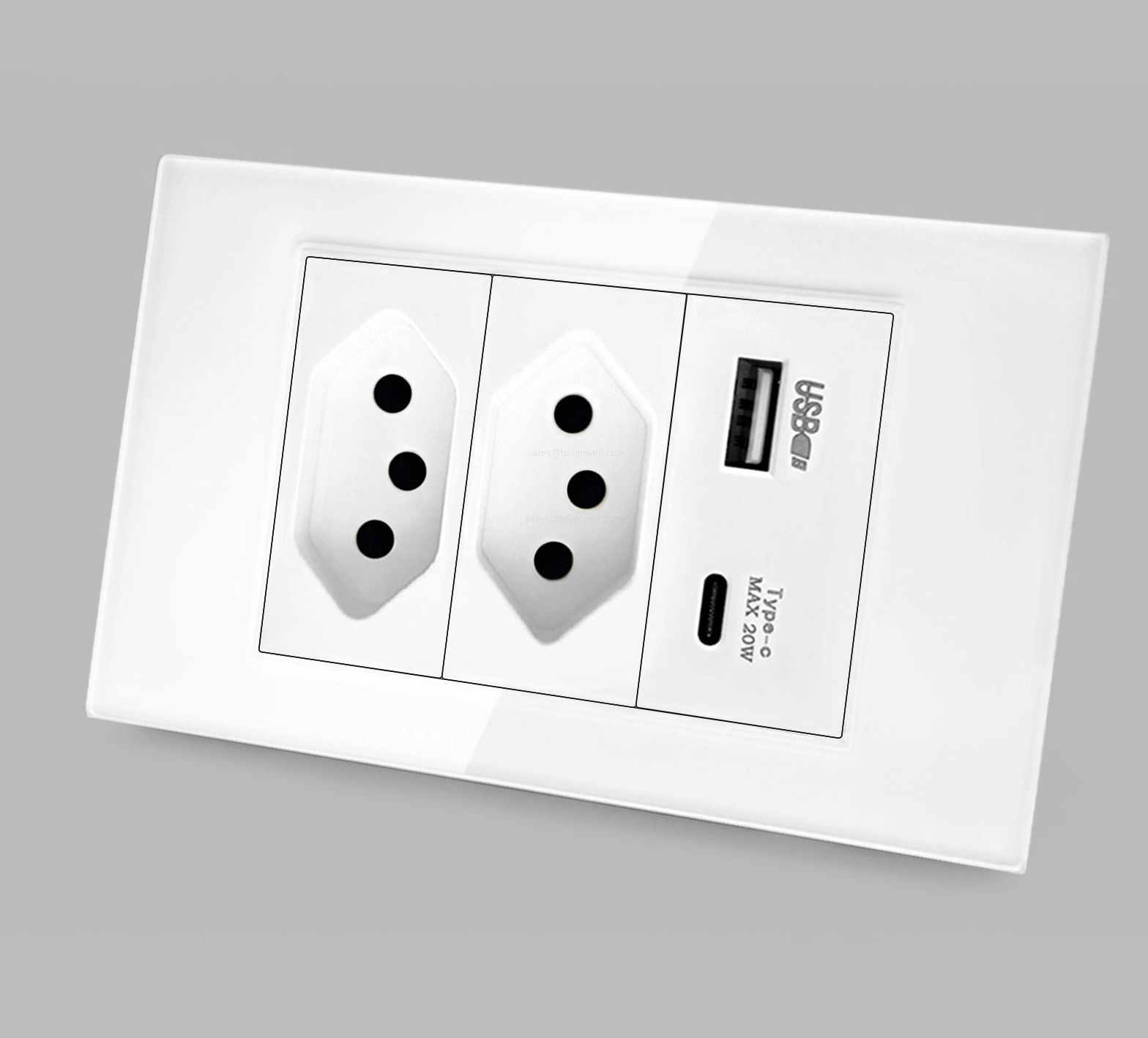

Brazil Standard Smart Switch Wall Outlet White Crystal Glass Panel Electrical Receptacle 10A 20A Power Socket with USB Type C 20W Fast Charger and Cat6 RJ45 Network Module

Dual-Amperage Engineering & Heavy-Duty Load Capacity

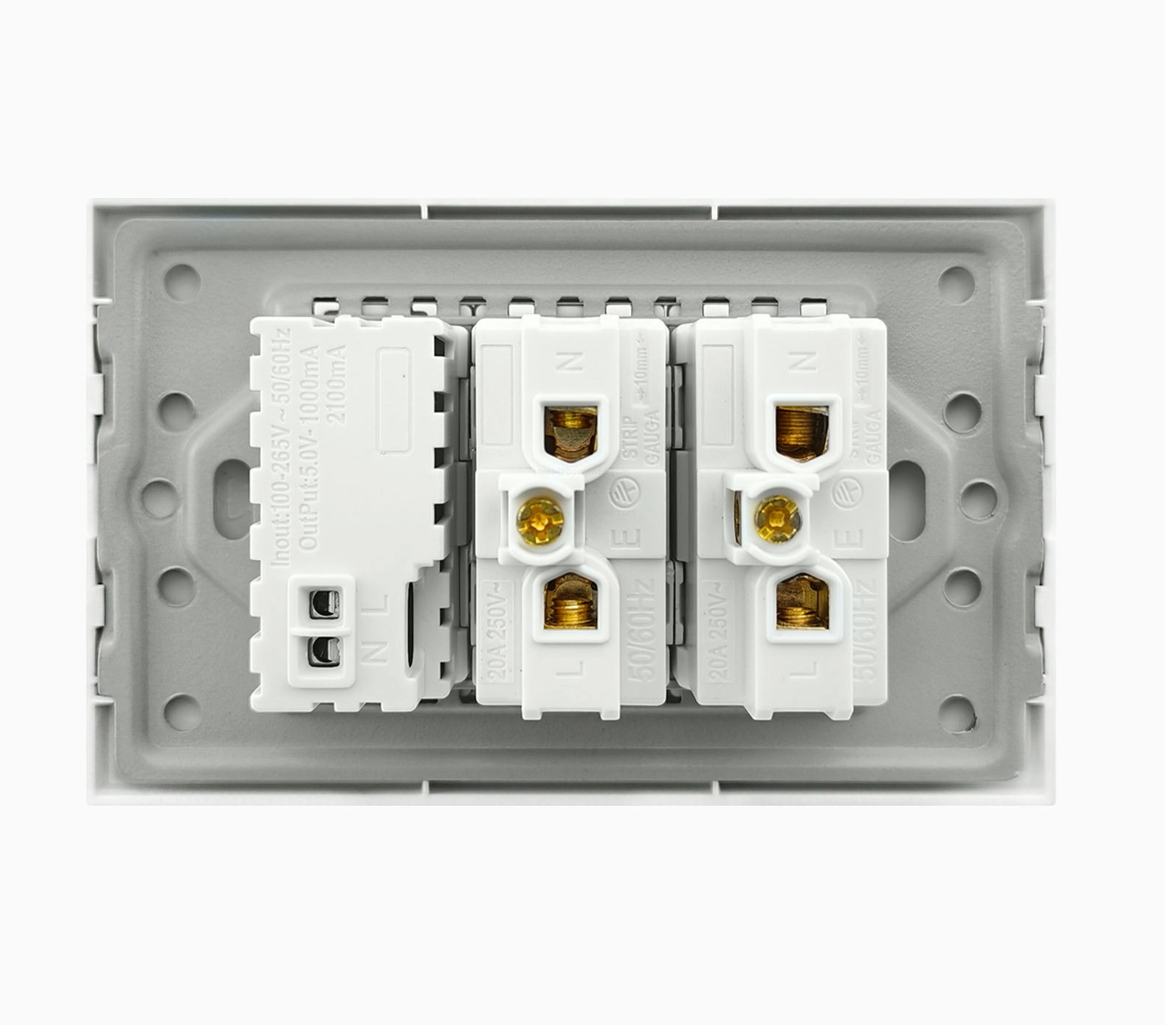

Engineered to withstand rigorous architectural and commercial infrastructure demands, this premium modular electrical system fully integrates dual-rating capacities to support both low-current domestic devices and high-load appliances. The interior configuration features distinct modules designed to manage a continuous 10A actual load with a maximum threshold of 2500W, as well as a robust 20A actual load operational tier rated up to 5000W under standard 2500V testing parameters. This heavy-duty current delivery mechanism utilizes precision-selected phosphor bronze copper conductors integrated directly into high-capacity terminal chambers. These solid copper terminals provide strong mechanical clamping onto large-gauge line conductors, effectively reducing micro-arcing tendencies, ensuring thermal efficiency, and maintaining reliable structural power conductivity over years of intensive usage.

Advanced 20W Intelligent Charging & Data Infrastructure

To satisfy contemporary technical requirements for modern workspace layouts, the network and power hub combines analog line-voltage distribution with dedicated digital charging and data interfaces. The premium low-voltage charging assembly integrates a 1A1C dual-port configuration, delivering an intelligent 20W high-power output directly through an optimized Type-C port alongside a traditional USB-A socket. This smart charging terminal is engineered with localized overcurrent and overvoltage protection circuits to safely power high-end electronic devices without requiring bulky external adaptors. Complementing this charging node is a high-bandwidth Cat6 RJ45 network module engineered for clean, shielded data transmissions, establishing an unified high-performance utility point inside a single mounting footprint.

Structural Reinforcement & Multi-Layer Safety Isolation

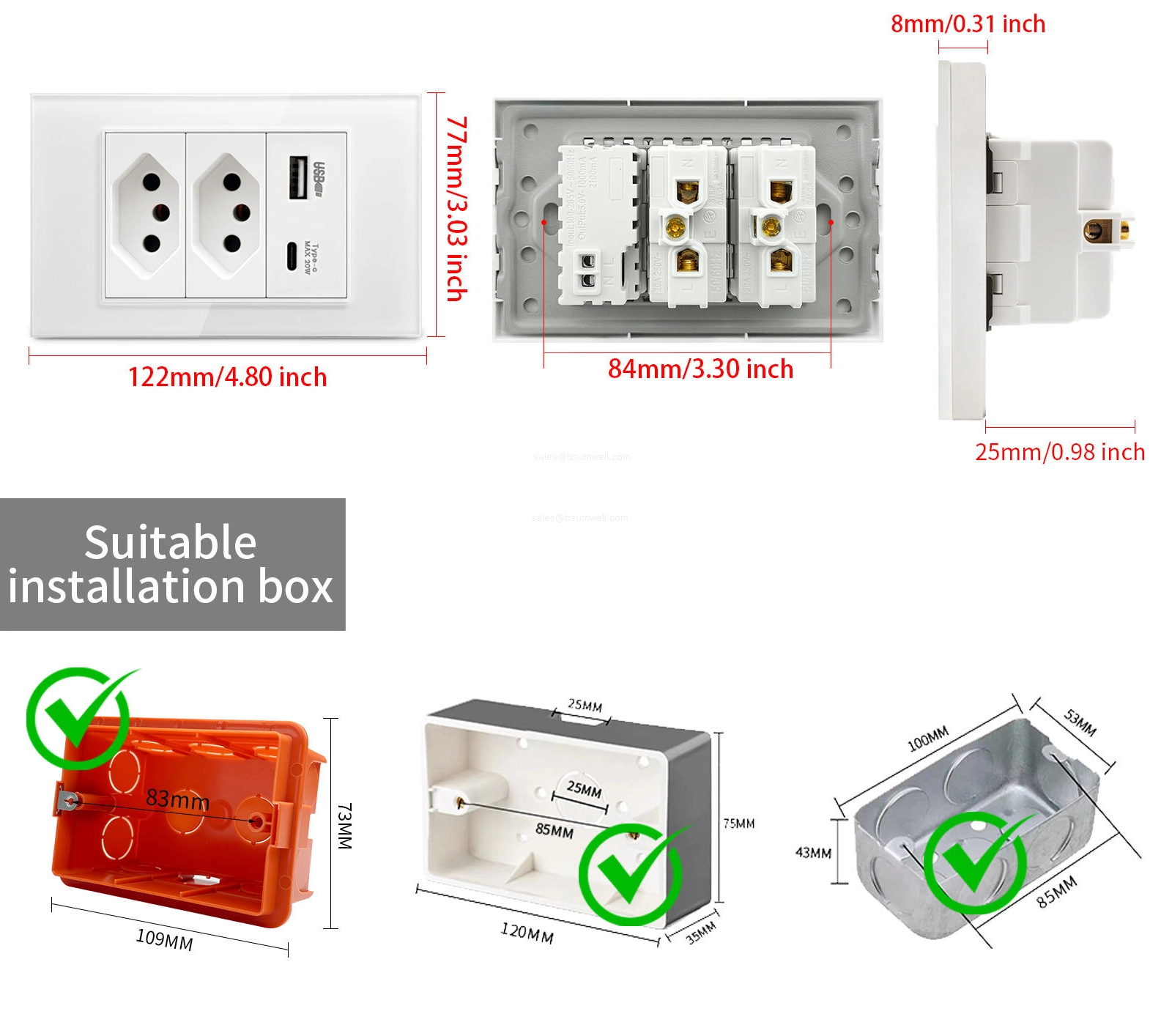

Built upon an authoritative baseline of safety engineering, the unit features a rigid 1.2-millimeter steel support frame that serves as a high-strength structural foundation. This internal steel frame is coated with an anti-corrosion absolute gray paint to isolate structural elements, resist systemic moisture degradation, and completely eliminate flex or deformation during aggressive mechanical plug insertions. The exterior faceplate utilizes a scratch-resistant white crystal glass panel that maintains aesthetic clarity and simplifies surface maintenance. Internally, an advanced anti-misconnection safety protection door guards every single socket aperture. This safety shutter mechanism provides robust physical isolation, blocking foreign objects or misaligned contacts to ensure absolute protection in residential and light industrial environments.

Frequently Asked Questions (FAQs)

Q1: What is the benefit of the dual 10A and 20A rating structure on these Brazilian standard sockets?

A1: The system is structurally engineered with large-capacity terminals to support separate load requirements within a unified layout. The 10A module safely manages standard household electronics up to 2500W, while the heavy-duty 20A module utilizes reinforced phosphor bronze contacts to reliably supply high-capacity appliances up to 5000W without thermal deterioration.

Q2: Does the USB Type-C module support fast charging protocols for modern electronics?

A2: Yes. The advanced 1A1C dual-port module delivers a dedicated 20W high-power smart output through its Type-C terminal. It contains integrated overcurrent and overvoltage protective circuitry to safely and efficiently quick-charge compatible smartphones, tablets, and mobile devices directly from the wall socket panel.

Q3: How does the internal 1.2mm steel framework improve long-term installation reliability?

A3: Unlike standard plastic mounting brackets that can crack or warp under stress, the 1.2-millimeter industrial steel frame provides rigid, long-lasting durability. Coated with a protective anti-corrosion paint, it reinforces the modular alignment, maintains a perfectly flat wall profile, and absorbs structural pressures during frequent plugging cycles.

Q4: Can the Cat6 network socket module be safely housed right next to high-voltage lines?

A4: Yes. The system employs a secure multi-layer isolation layer alongside individual module separation chambers. This internal safety division completely isolates low-voltage data cables (like Cat6 RJ45 and USB lines) from high-voltage 250V power connections, preventing signal interference and maintaining strict code compliance.
